Round Post Pallet Stacking rack
——
Pallet Stacking rack · Warehouse Storage Rack · Made In China
Product Advantage
——
No.1 / Strong tubular steel - stack up to 4 high
No.2 / Removable arms - fully collapsible, save space, easy storage when not in use
No.3 / Cup feet - easy stacking
No.4 / corrosion resistant, suitable for outdoor use
Features:
1) Great for a variety of items in a variety of sizes.
2) Using folklift to stack the racks, increasing utility rate of space.Saving at least 50% warehouse space
3) Convenient to use, you can change stacking location easily.Easily moved around by forklift, even when fully loaded.
4) The four pillars of the rack are detachable and can be storaged on the base, which can avoid missing, save spaces and is convenient for storage and transport.
5) The posts are available in multiple heights. The carrying capacity varies from 1500 to 2000 kg per mobile rack.
6) Special tapered structure of the pillars ensures that the splicing process is closely coordinated, so as to avoid shaking when stacking and ensure safety.
7) The square tube arrangement of the base can be different depending on the loading of the goods.
8) Grid plate or steel plate can be added to the base according to differnet types of goods.
9) Depending on the requirements, you can customize the extended version of the base or the six-pillar product.
10) The surface treatment of the product is mainly powder coating, and the color of the pillars and the base can be customized according to different needs.
11) High strength, wear resistance, high-temperature resistant
12) Can be stacked for 4 high, which greatly saves the storage space
Pallet Stacking rack · Warehouse Storage Rack · Made In China
Customized Accessories
——
Customized accessories such as the forklift guide, bottom wire mesh, support bar, etc.
Galvanized
Plastic Spray
| Standard Specification |
| Model | Exterior Size LxWxH (mm) | 1*20"GP sets | 1*40"GP sets | 1*40"HQ sets | Loading (kg) |
| HYDWS-1 | 1410*1050*265 | 144 | 288 | 352 | 1000 |
| HYDWS-2 | 1050*50*2.0 | 576 | 1152 | 1408 |
| HYDWS-3 | 1085*1085*265 | 180 | 360 | 440 | 1000 |
| HYDWS-4 | 1200*50*2.0 | 720 | 1440 | 1760 |
| HYDWS-5 | 2800*1085*270 | 68 | 136 | 168 | 1000 |
| HYDWS-6 | 950*60*2.5 | 272 | 544 | 672 |
| Material | Mild Steel Q235 |
| Available | Wheels / Wooden plywood / Metal mesh sheet / Metal sheet / Plastic sheet |
| Finish | Powder Coating / Zinc / Hot dipped zinc |
Big Bag
Forklift Guide
Hot Dip Galvanized + Powder Coating
Pallet Stacking rack · Warehouse Storage Rack · Made In China

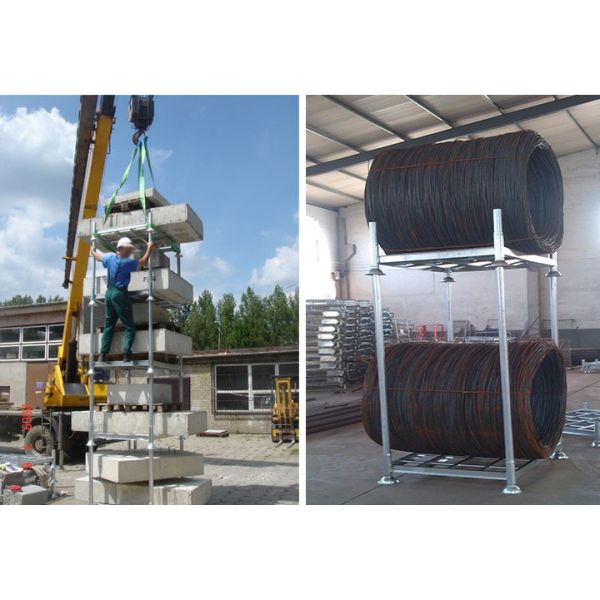

CASE
—
Pallet Stacking rack · Warehouse Storage Rack · Made In China
Pallet Stacking rack · Warehouse Storage Rack · Made In China
Pallet Stacking rack · Warehouse Storage Rack · Made In China
Pallet Stacking rack · Warehouse Storage Rack · Made In China
Ensure the quality of Huayide racking products
—
| 1 | The raw material of the shelf is customized from China's large steel group of high quality carbon steel, durable and strong, to ensure the quality of the product from the source. |
| 2 | The shelf welding adopts dioxygen protection welding, the welding joint has good cracking resistance, small welding deformation, beautiful forming, and does not need slag cleaning. |
| 3 | Each column and beam of the shelf are designed by professional personnel with professional technology and cut by professional equipment, so as to ensure the accurate size of the shelf. |
| 4 | Professional spray before treatment, oil removal, rust removal, phosphating, powder, and then in high temperature oven baking molding, wear-resistant, rust proof. |
